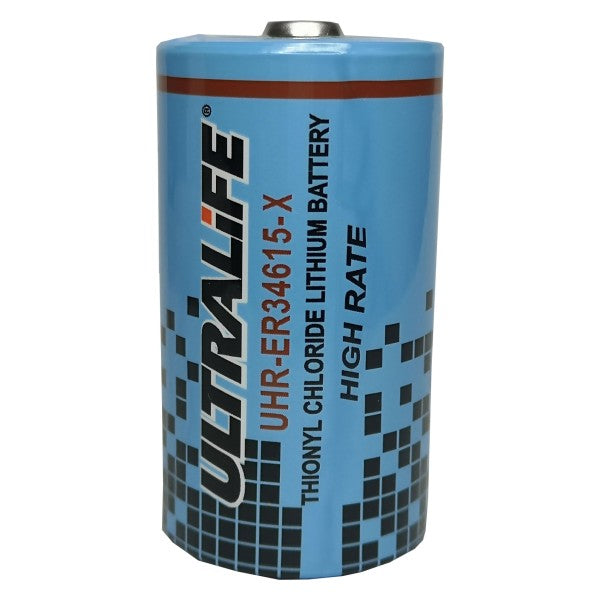

The Ultralife 3.6V 14.5Ah D Cell ER34615M Li-SOCl2 Spiral (UHR) is a high-performance, non-rechargeable battery designed for applications requiring high energy and reliability. Here are some key features and specifications for the cell:
- Voltage and Capacity: It has a nominal voltage of 3.6V and a capacity of 14.5Ah.
- High Drain Capability: The battery can handle continuous discharge currents up to 2000mA and pulse discharge currents up to 3000mA, making it suitable for high-power applications.
- Long Shelf Life: It boasts a low self-discharge rate of less than 1% per year at 20°C, ensuring a long shelf life of over 10 years depending on the application.
- Operating Temperature: The battery operates efficiently in a wide temperature range from -55°C to 85°C.
- Safety Features: It includes a hermetic glass-to-metal seal to prevent leakage and a non-flammable electrolyte for safer operation.
- Applications: Common uses include military and radio applications, smart meters, alarm and security systems, beacons, GPS, and LED lighting.
| Specification | Details |
|---|---|
| Dimensions (mm) | 34mm x 61mm |
| Range | Ultralife Lithium |
| Pack Size | 1 |
| Weight | 107 g |
| Rechargeable | No |
| Chemistry | Lithium |
| Voltage | 3.6V |
| Brand | Ultralife |
| Size | D Cell |
| Capacity | 14.5Ah |
| Tariff Code | 85068090 |
| Country of Origin | United States |
