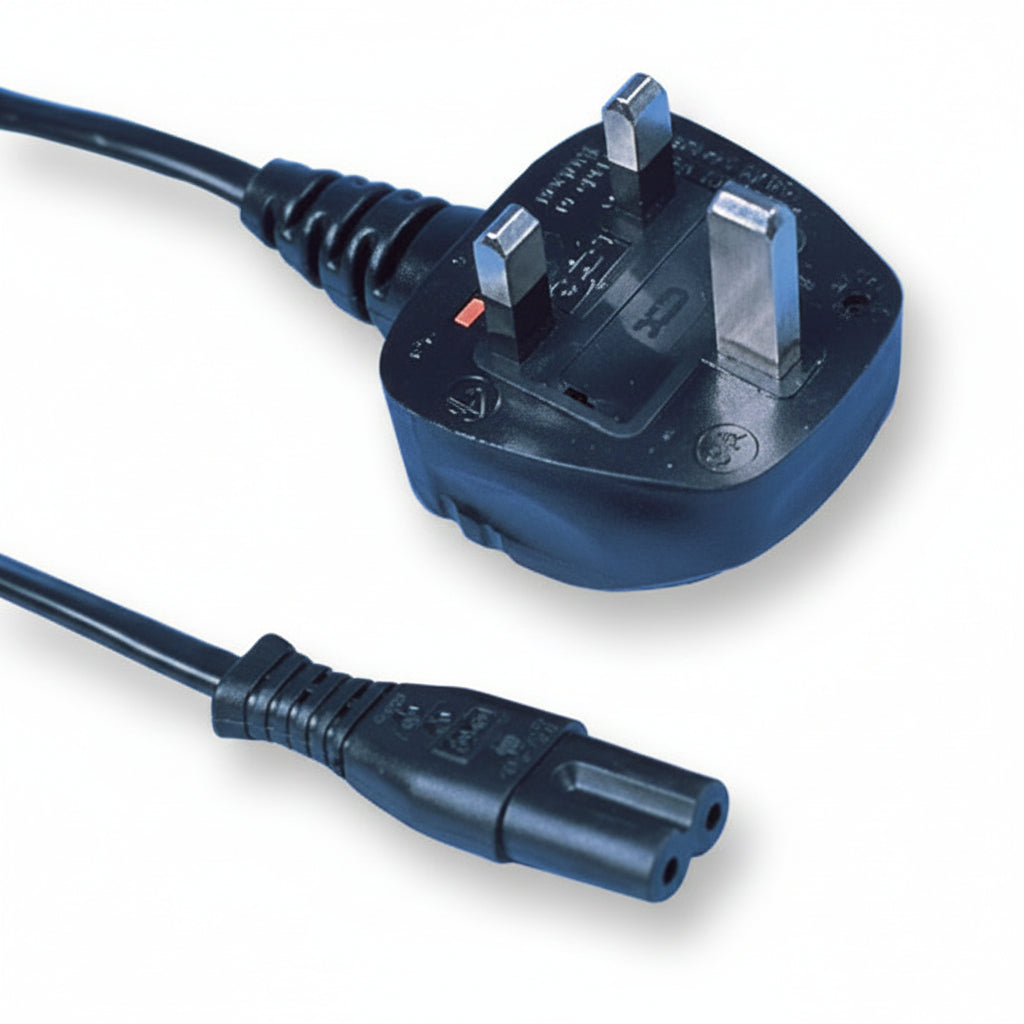

PRO ELEC PE01077 Plug to 'Figure-8' (C7) Type Mains Lead

The PRO ELEC PE01077 is a UK mains power lead designed to connect electrical devices that use a Figure-8 (IEC 60320 C7) power inlet to a standard UK wall socket. It is commonly used with devices such as TVs, games consoles, radios, DVD/Blu-ray players, set-top boxes, and other low-power electronics.

Key Features

• Connector type: UK Type G mains plug to IEC C7 Figure-8 connector.
• Cable length: 2 metres.
• Colour: Black.
• Voltage rating: 240V AC.
• Current rating: Rated for 3A operation and fitted with an integral 3A fuse in the UK plug.
• Construction: Non-rewireable, fully moulded connectors for durability and safety. Manufactured using 0.75 mm² two-core cable.
• Compliance: RoHS compliant.

Product Description

The PRO ELEC PE01077 is a reliable replacement or spare mains lead that provides a secure connection between a UK mains outlet and equipment fitted with a standard C7 "Figure-8" socket. Its moulded plug construction and built-in 3A fuse help ensure safe operation, while the 2 m cable length offers flexibility for positioning equipment.

Typical Applications

• Televisions
• Audio equipment
• Satellite receivers and set-top boxes
• Games consoles
• Small household electronics
• Laptop power supplies that use a C7 inlet
