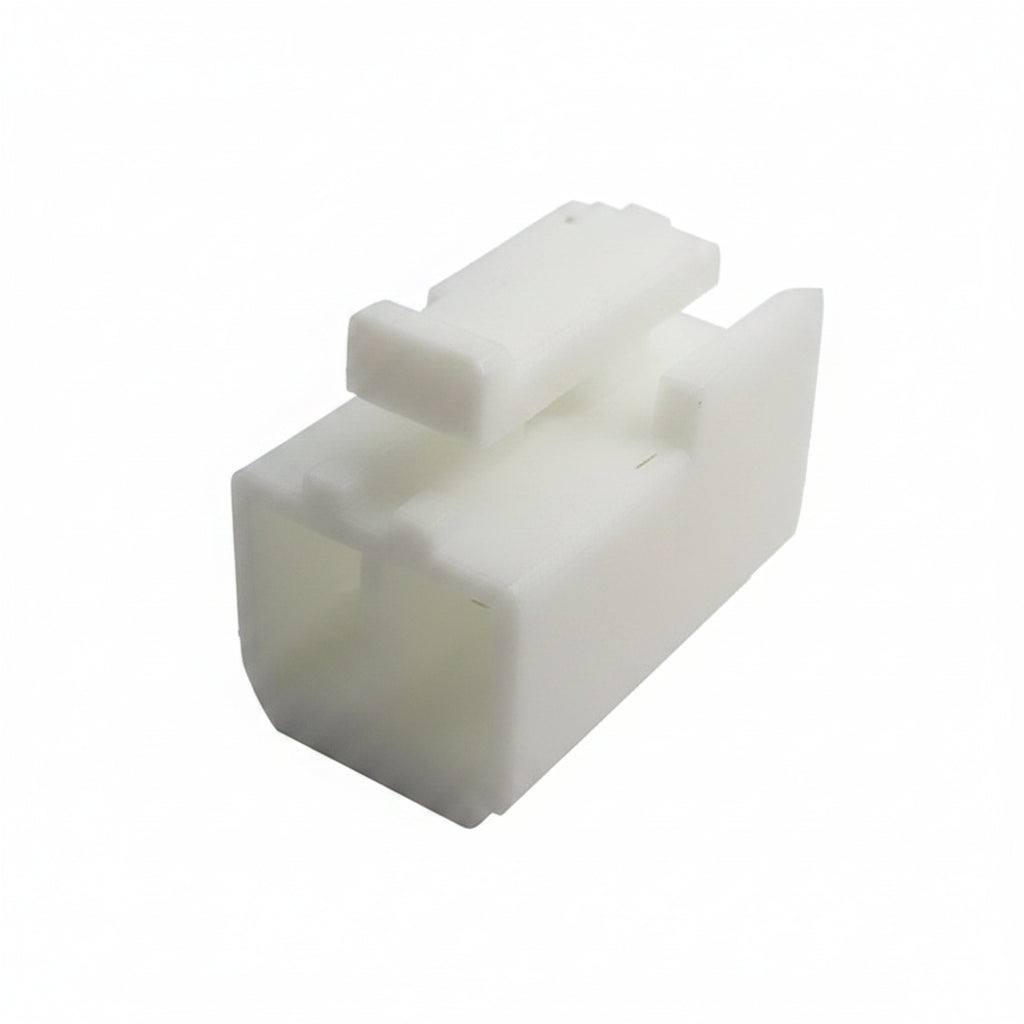

JST VHR-2N Crimp Housing, 2Way, 3.96MM

The JST VHR-2N is a 2-position crimp housing from JST's popular VH Series wire-to-board connector range. Designed for reliable power and signal connections, it features a 3.96 mm pitch and accommodates crimp contacts for secure wire termination. The housing is manufactured from durable, flame-retardant material, making it suitable for a wide range of industrial, consumer, and automotive-adjacent applications.

This connector housing accepts two crimp terminals, allowing the creation of a compact 2-way cable assembly that mates with corresponding JST VH Series headers. Its polarized design helps prevent incorrect insertion, while the positive locking mechanism ensures a stable connection in environments subject to vibration or movement.

Key Features

• Manufacturer: JST
• Series: VH Series
• Part Number: VHR-2N
• Number of Positions: 2
• Pitch: 3.96 mm
• Connector Type: Crimp Housing
• Mounting Style: Cable/Wire Mount
• Polarized Housing: Prevents reverse mating
• Material: High-quality flame-retardant nylon
• Compatible Contacts: JST SVH series crimp terminals
• Applications: Power supplies, industrial controls, home appliances, lighting equipment, and electronic assemblies

Typical Applications

The JST VHR-2N is commonly used where a dependable, easy-to-assemble wire-to-board connection is required. Its relatively large pitch and robust contact system make it ideal for carrying higher currents than smaller signal connectors, making it a popular choice in power distribution circuits, LED lighting systems, battery-powered devices, and embedded electronic equipment.

The VH Series is widely recognized for its reliability, ease of assembly, and cost-effective performance in both prototyping and production environments.
