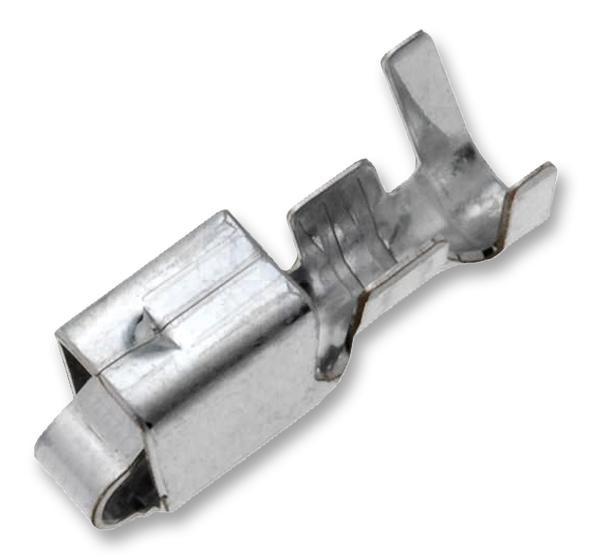

JST BVH-21T-P1.1 Crimp Socket 0.33-0.83MM

JST BVH-21T-P1.1 is a female crimp socket contact designed for use with JST VH Series wire-to-board connectors (3.96 mm pitch). It is intended for crimp termination onto wires with conductor sizes from 0.33 mm² to 0.83 mm² (approximately 22 AWG to 18 AWG).

Key Specifications

• Manufacturer: JST (Japan Solderless Terminals)
• Part Number: BVH-21T-P1.1
• Contact Type: Female (socket) crimp terminal
• Series: VH Series
• Wire Size: 0.33 to 0.83 mm² (22 to 18 AWG)
• Contact Material: Phosphor bronze
• Contact Plating: Tin-plated
• Termination Method: Crimp
• Rated Current: Up to 7 A (application dependent)
• Rated Voltage: 250 V AC/DC
• Compatible Insulation Diameter: Approximately 1.7 to 3.0 mm

Typical Applications

The BVH-21T-P1.1 is commonly used in:

• Power and signal connections in consumer electronics
• Industrial control equipment
• Appliances
• General wire-to-board interconnects requiring the JST VH connector system

Description

This terminal is crimped onto a stranded wire and then inserted into a JST VH-series housing to form a secure, vibration-resistant electrical connection. The phosphor-bronze construction provides good mechanical strength and conductivity, while the tin plating improves corrosion resistance and solderability.

In short, the JST BVH-21T-P1.1 is a tin-plated phosphor bronze female crimp contact for 18-22 AWG (0.33-0.83 mm²) wire, used with JST VH Series 3.96 mm pitch connector housings.
