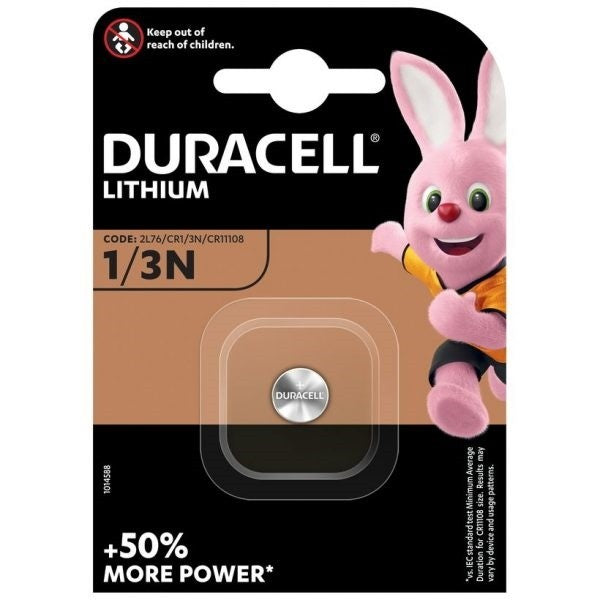

The DURACELL DL1/3N is a high-capacity lithium manganese dioxide battery designed for use in a variety of applications. Here are some key features:
- Nominal Capacity: 160 mAh
- Voltage: 3.0 – 3.3 V
- Discharge Current: Standard continuous 2.0 mA
- Internal Impedance: Nominal 250 mOhm at 1kHz
- Weight: Approximately 3.3 g (0.12 oz.)
- Li Metal Content: Approximately 0.06g
This battery is known for its high voltage response and reliable performance, maintaining stability throughout most of its lifetime. It operates within a wide temperature range of -20°C to +75°C, making it versatile for various environments. Additionally, it has a low self-discharge rate, ensuring a long operating life with less than 1% loss after 1 year of storage at +20°C.
The DL1/3N battery also boasts excellent resistance to corrosion and meets major quality, safety, and environmental standards, including IEC 60086-4 for safety and UN 38.3 for transport. It’s RoHS and REACH compliant, reflecting Duracell’s commitment to environmental responsibility.
| Specification | Details |
|---|---|
| Dimensions (mm) | 11.6, 10.8 |
| Range | Duracell |
| Pack Size | 1 |
| Weight | 3.3 g |
| Rechargeable | No |
| Chemistry | Lithium |
| Voltage | 3V |
| Brand | Duracell |
| Size | DL1/3N |
| Capacity | 160mAH |
| Tariff Code | 85065000 |
| Country of Origin | United States |
