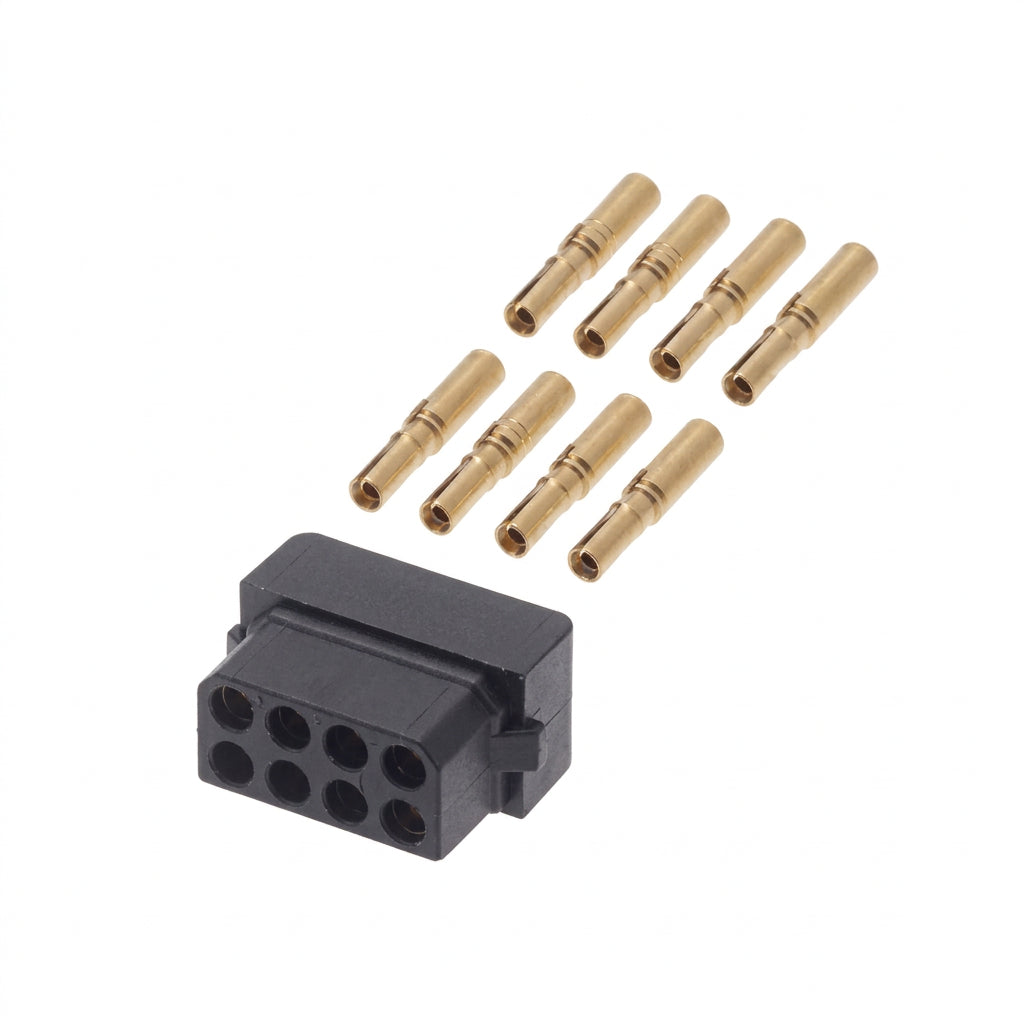

8 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG

This 8-position rectangular receptacle connector gives you a reliable wire-to-board or wire-to-wire connection in compact electronic assemblies. It uses crimp termination, which makes a strong, gas-tight joint between wire and contact. That joint stays stable under vibration and repeated handling, so the connector suits production wiring harnesses as well as prototypes.

The contacts are gold plated. Gold resists corrosion and oxidation, keeps contact resistance low over the connector’s life, and carries low-current and signal-level circuits well where a clean connection matters. The receptacle accepts 24 to 28 AWG wire, which is the usual range for fine-gauge signal, data and low-power lines in space-limited designs.

Key features

• 8 positions: carries several signals or power lines through one compact interface
• Rectangular housing: easy to orient and mate, with efficient use of PCB and panel space
• Crimp termination: quick, repeatable assembly with standard crimp tooling and no soldering
• Gold-plated contacts: low contact resistance, good corrosion resistance and dependable signal performance
• 24–28 AWG wire range: fits fine-gauge hookup and ribbon-style discrete wire

Typical applications

• Industrial control and automation equipment
• Consumer electronics and appliances
• Computer peripherals and internal cabling
• Instrumentation, test and measurement devices
• Telecommunications and networking hardware
• Wire harness and cable assembly manufacturing
